ARG259UHC Aluminum Rolling Grilles

ARG259PAAUHC High-Performance Aluminum Rolling Grille

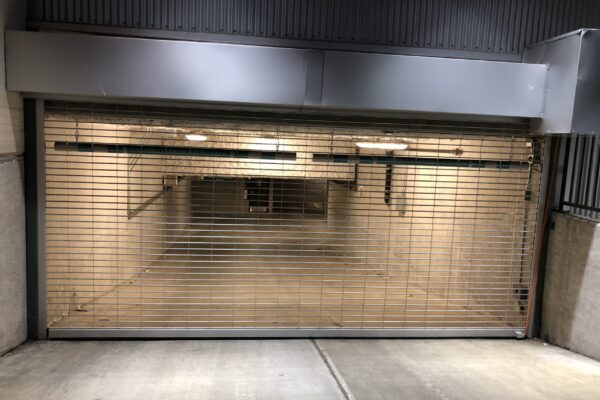

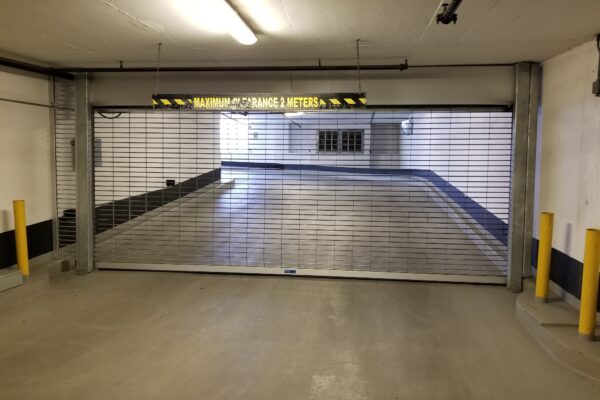

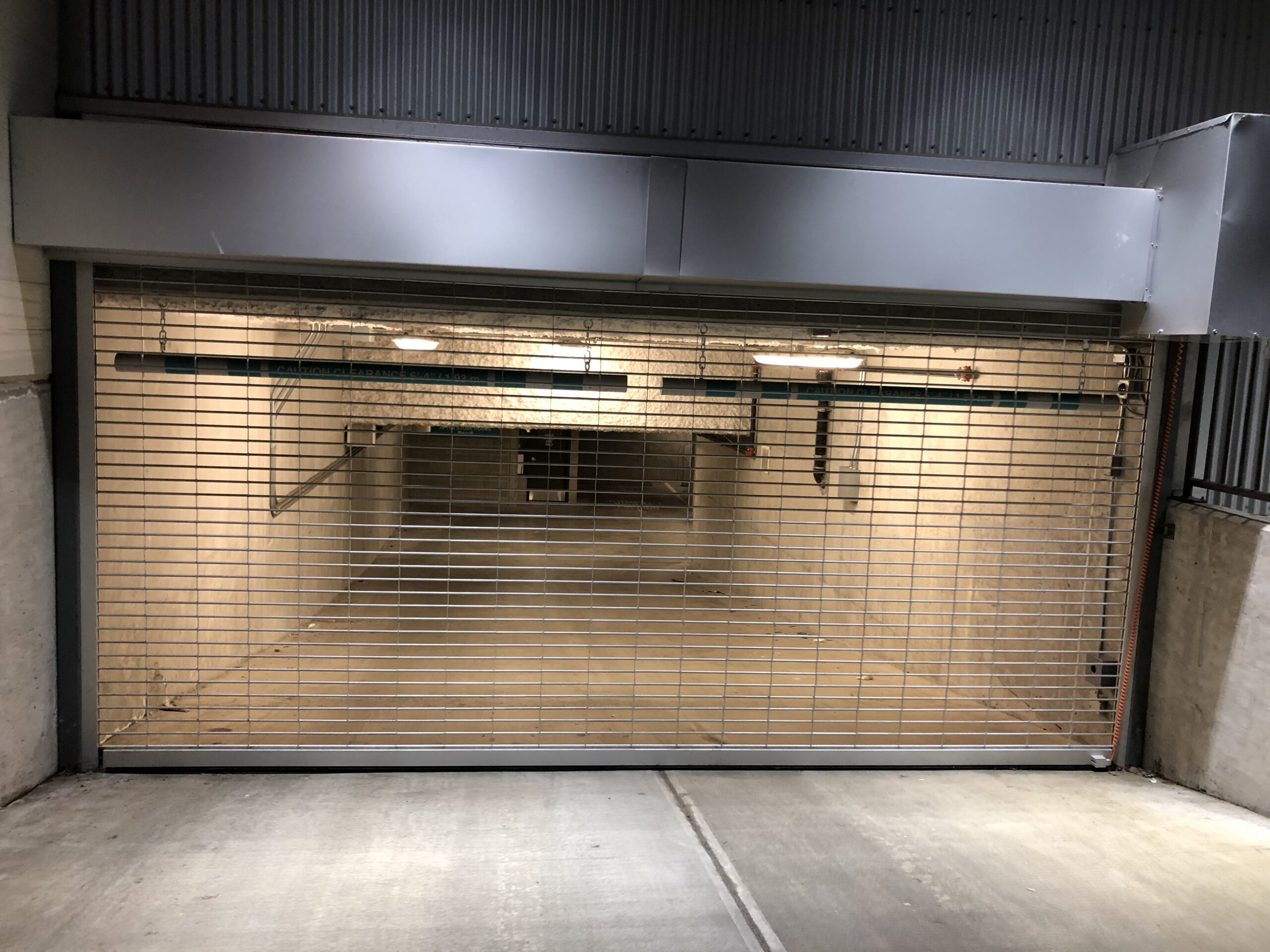

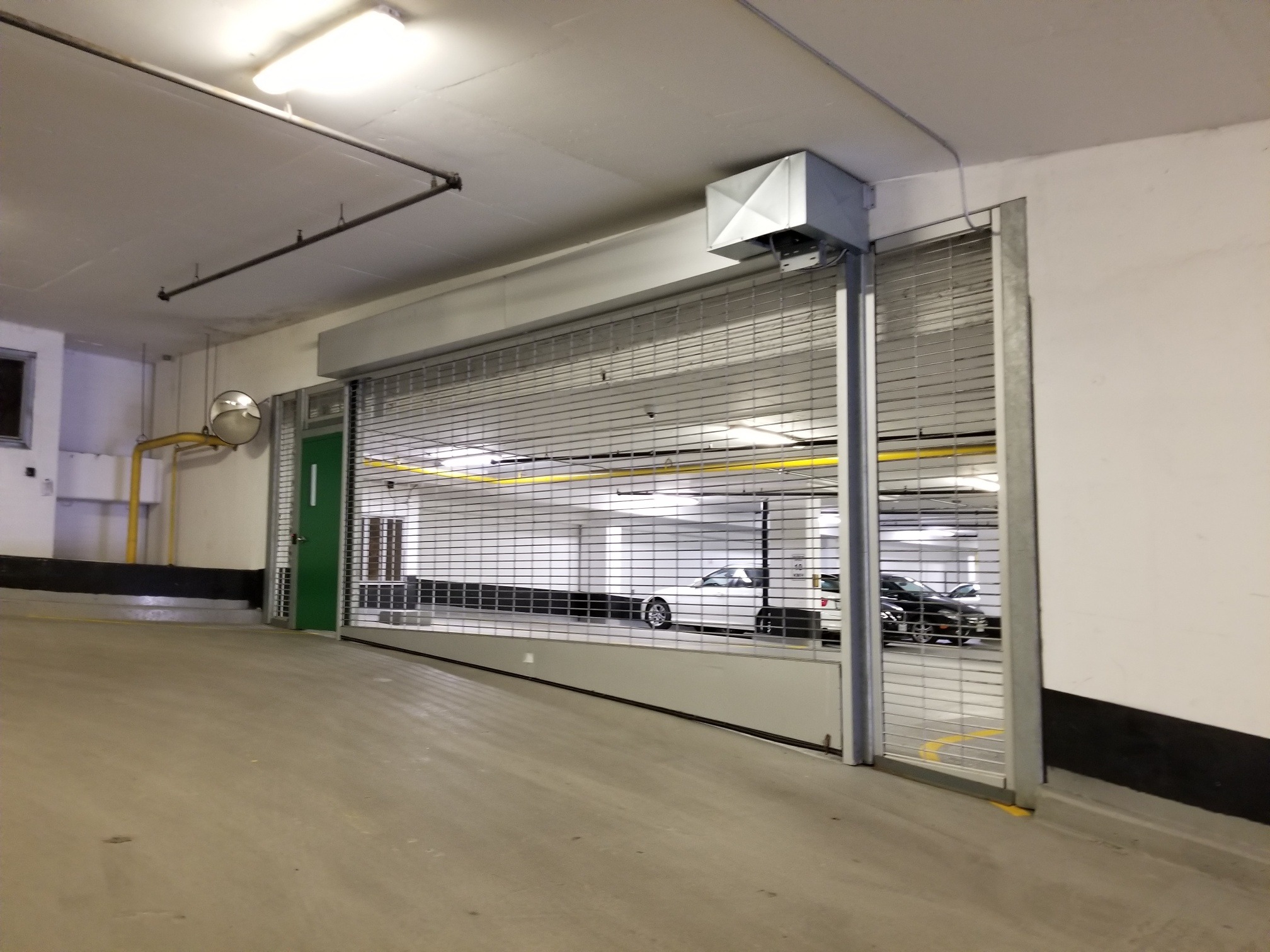

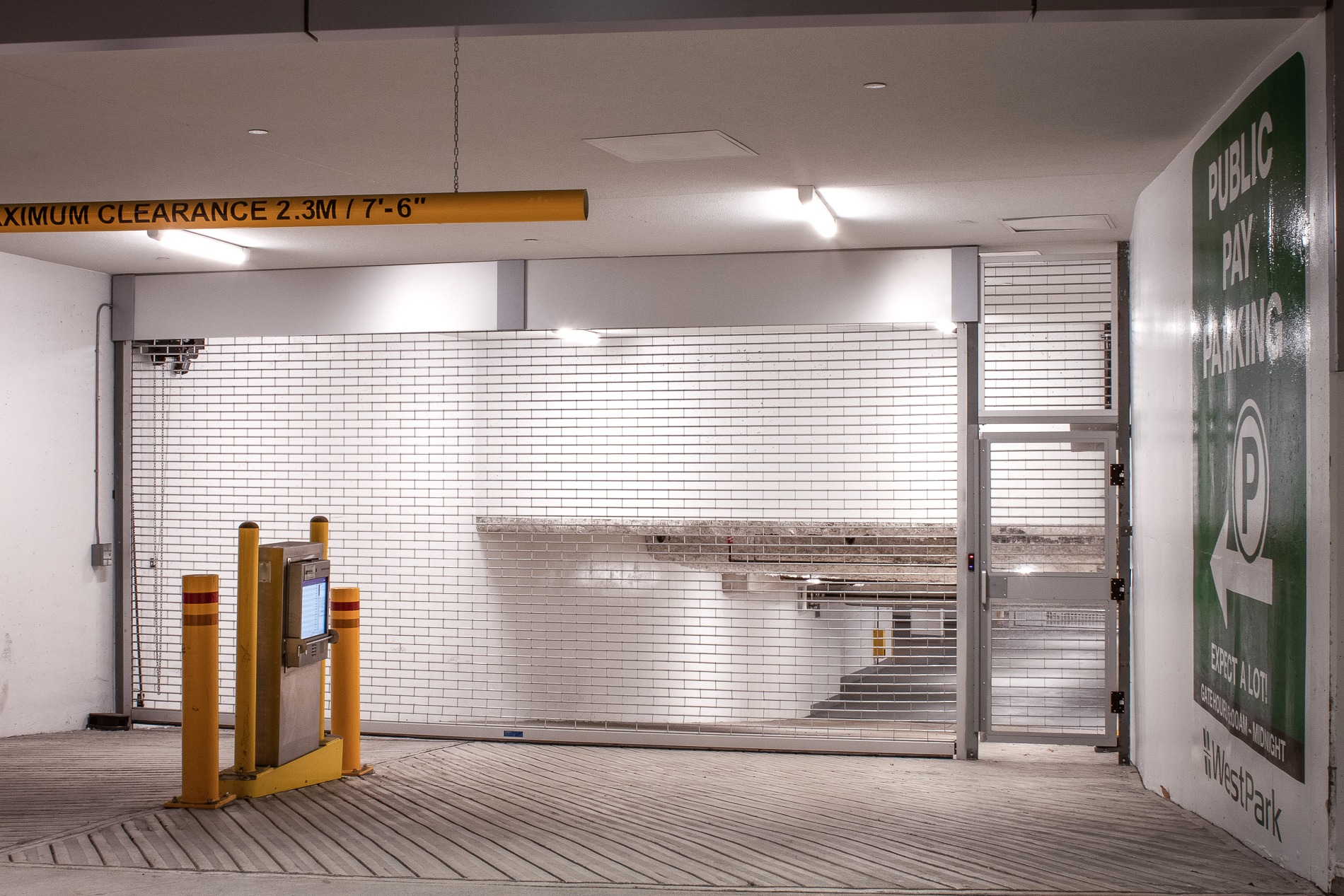

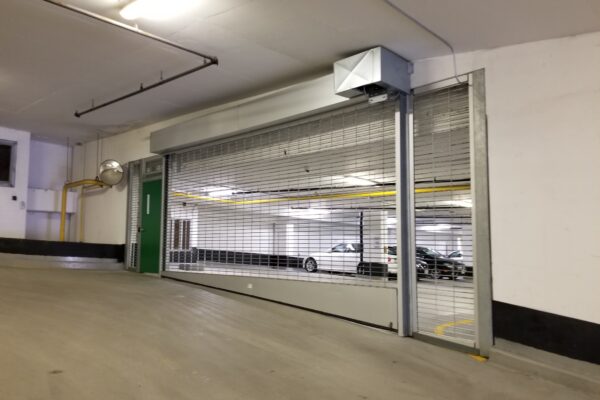

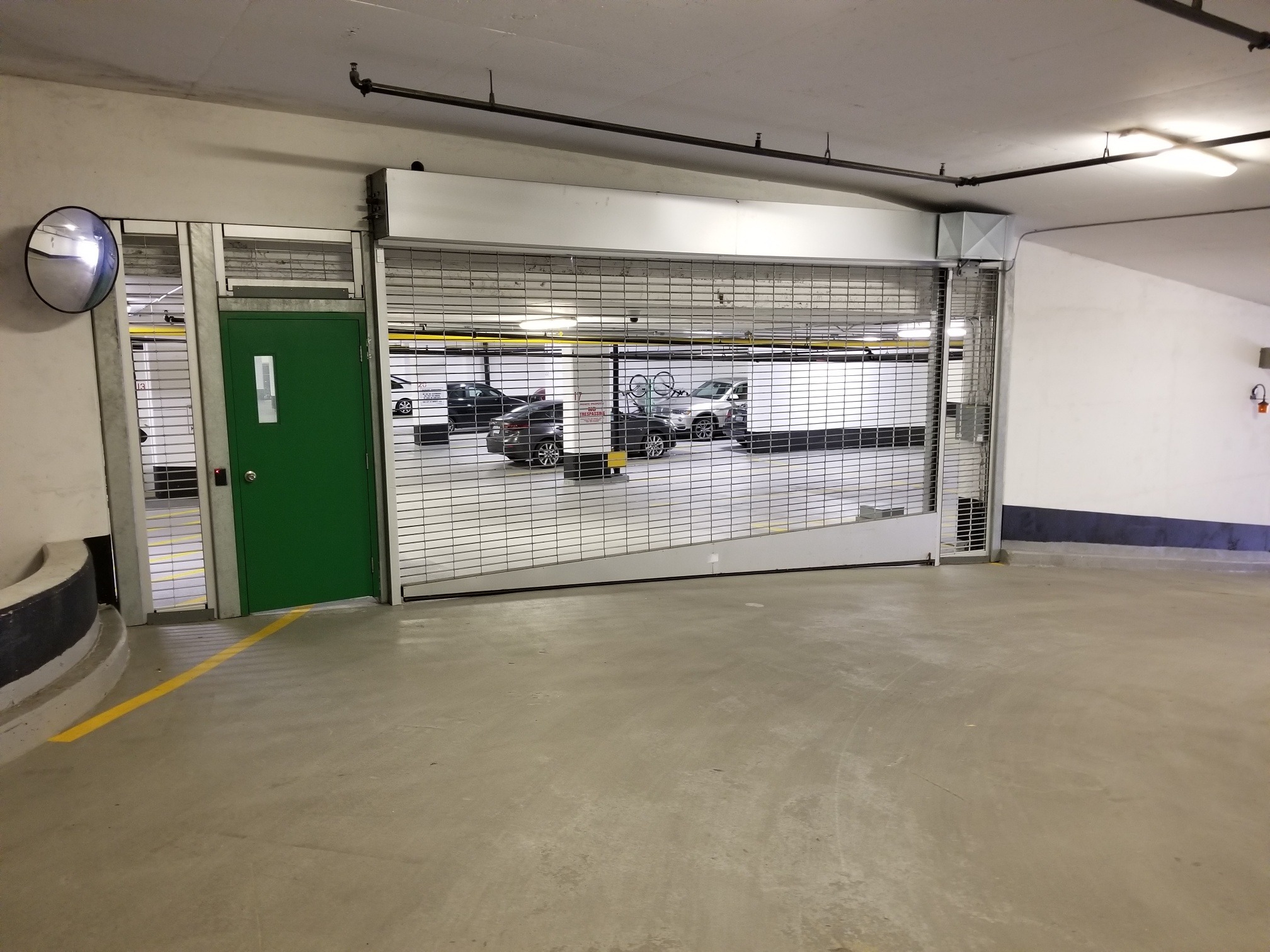

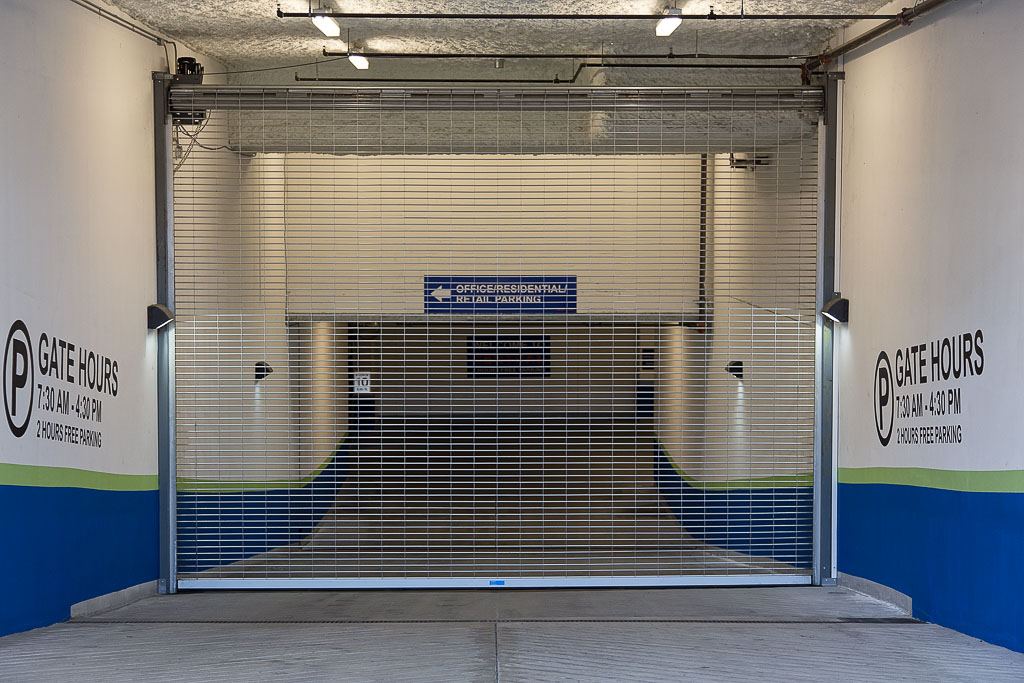

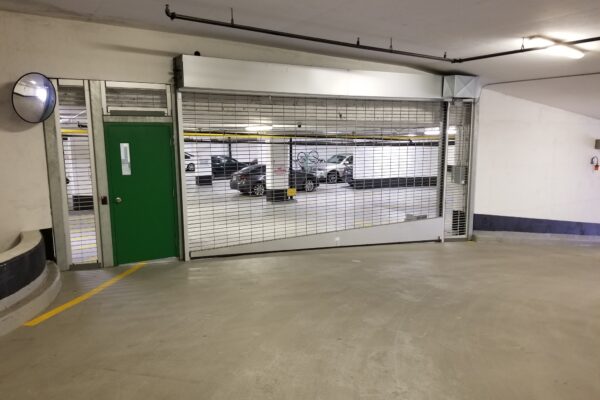

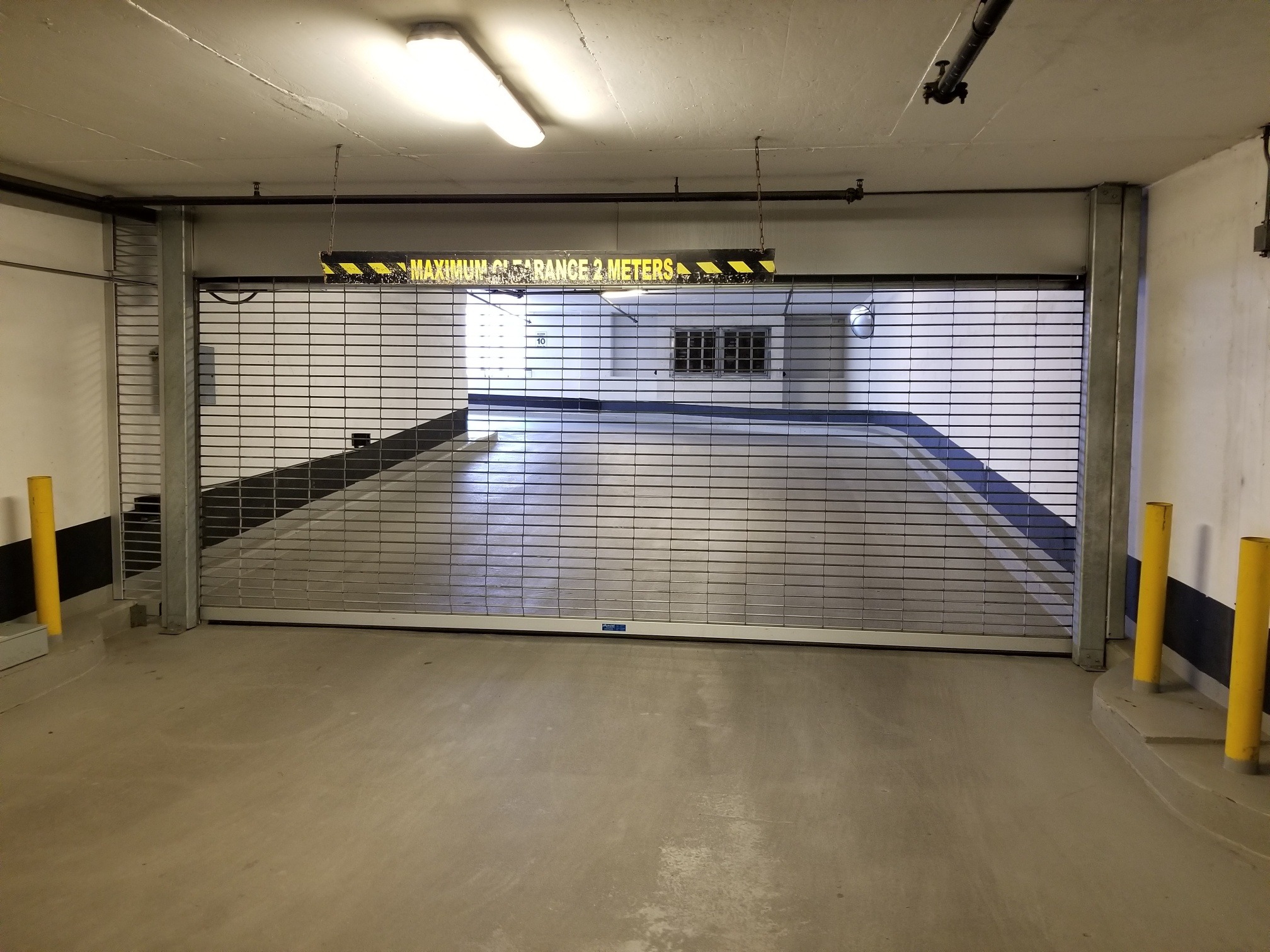

The ARG259PAAUHC Aluminum Rolling Grille sets the standard for high-performance security solutions in commercial spaces. Manufactured by Amstel Manufacturing, this rolling grille offers unmatched durability, smooth operation, and a sleek design, making it ideal for parking garages, loading docks, and other heavy-duty applications.

Key Features and Benefits

Robust Curtain Design with Precise Spacing

• Constructed with 1/8” thick by 5/8” wide by 3-1/4” flat aluminum vertical links arranged in a straight pattern.
• 2-1/2” on-center spacing between horizontal aluminum rods ensures excellent visibility and airflow while maintaining security.
• Durable 7/16” diameter PVC sleeves, spaced at 9” intervals, enhance structural integrity and smooth operation.

Reinforced Aluminum Bottom Bar with Safety Edge

• Features a tubular aluminum bottom bar, 2” wide, 3” high, and 1/8” thick for exceptional strength.
• Equipped with a Wireless Pneumatic Safety Edge, providing advanced safety for high-traffic environments.

Smooth and Quiet Guide System

• Includes 1-3/8” wide by 2-3/4” deep extruded aluminum guides with a built-in upset shoulder for curtain retention.
• Guides feature rigid PVC strips, ensuring smooth and quiet operation.
• Designed with a bell-mouth shape for effortless curtain movement, secured with concealed fasteners at 2’ intervals.

Springless Design for Longevity

• Constructed with a standard steel pipe barrel designed to prevent deflection exceeding 0.03” per foot of door width.
• The springless system includes a resettable inertia brake for enhanced safety and performance.
• Tested for up to 300,000 cycles, offering unmatched reliability and reduced maintenance.

Durable Bracket Plates for Enhanced Support

• Bracket plates are made of 3/8” thick prime-painted steel for long-lasting durability.
• Equipped with HD polar bearings to suit the shaft’s diameter.
• Optional galvanized dip finish, or Powder Coated to match aluminum is available for exterior mounting applications

Advanced Motorized Operation for Seamless Performance

• Motorized Bracket Mount Design: Installed on the face of the coil, with motor size and voltage customized based on door size and cycles.
• Continuous Duty Motor: Engineered for heavy use, equipped with a concealed heavy-duty disc brake system for reliable stopping power.
• Fast Travel Speed: Operates at speeds up to 12 inches per second, ensuring efficiency in high-traffic areas.
• Smart Features: Includes time delay on reverse, soft start and stop functions, and a timer to close for enhanced automation.
• Safety Controls: Comes with a wireless pneumatic safety edge, photo eye sensors, and a standard three-button station for operation (open, close, stop).

Advanced Features for High-Traffic Applications

The ARG259PAAUHC Aluminum Rolling Grille is designed for demanding environments, offering smooth operation and reliable performance. Its 2-1/2” rod spacing balances visibility with security, making it a preferred choice for loading docks, and parking facilities.

Why Choose the ARG259PAAUHC High-Performance Aluminum Rolling Grille?

This overhead coiling door combines cutting-edge technology with durable construction to meet the unique challenges of heavy-duty commercial spaces. Its springless design, safety edge, and quiet operation make it a standout solution for businesses that demand both performance and reliability.
