ASH100 Rolling Aluminum Shutter – Compact Design

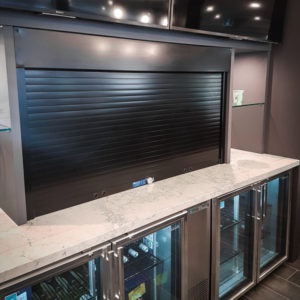

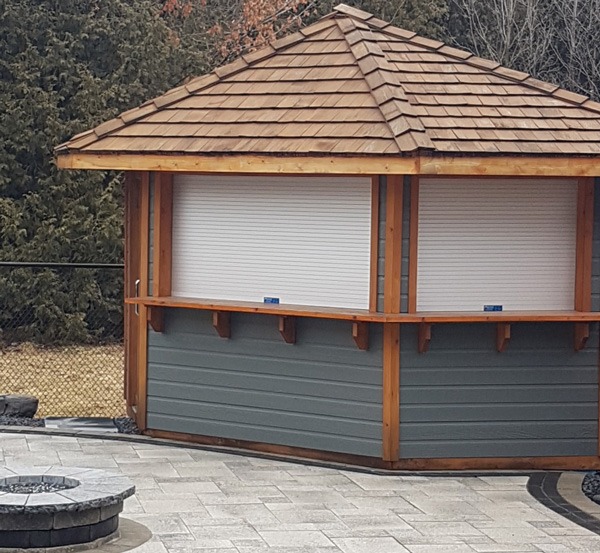

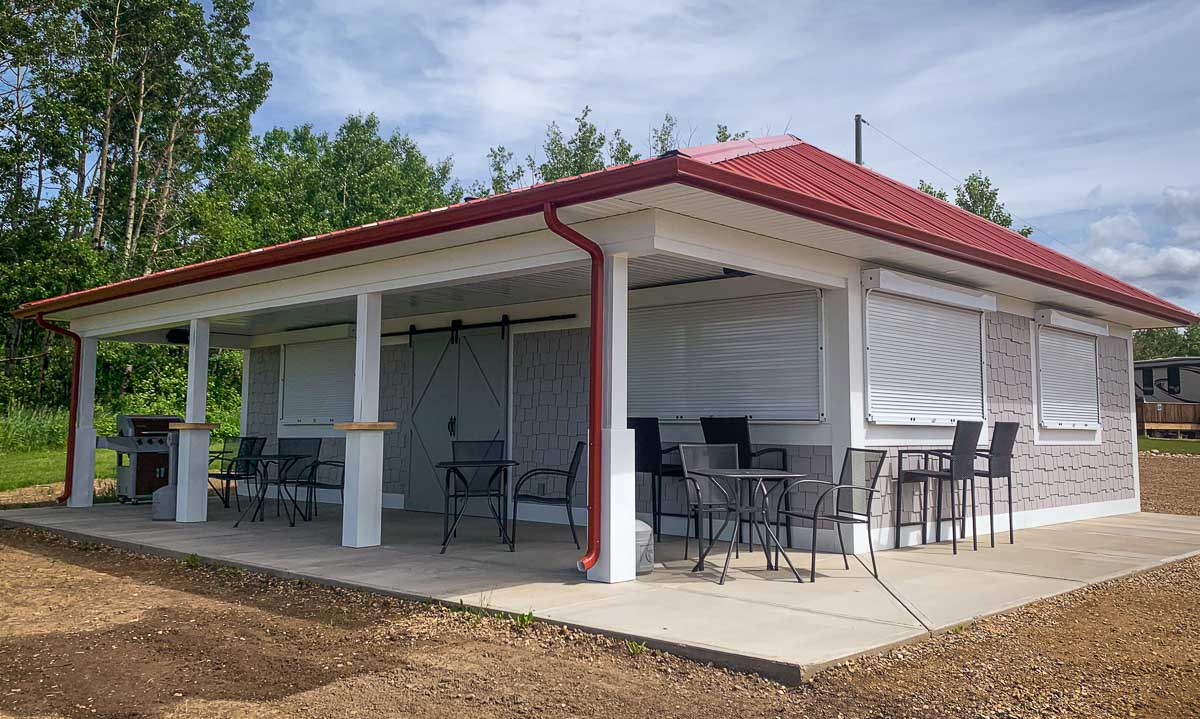

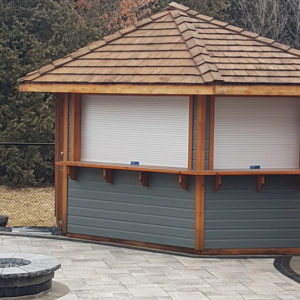

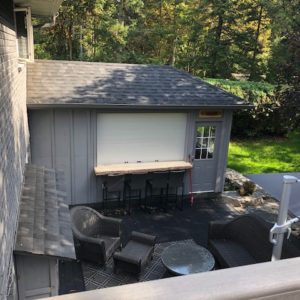

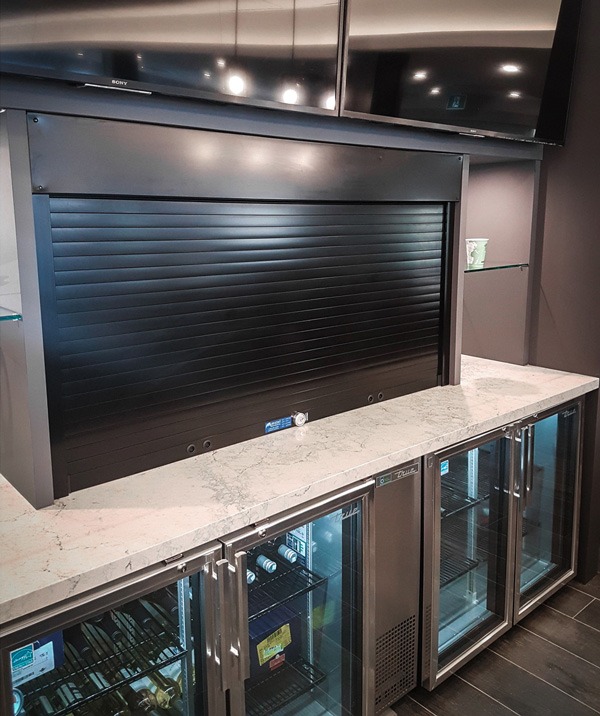

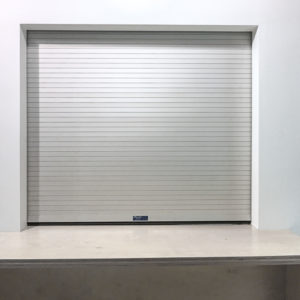

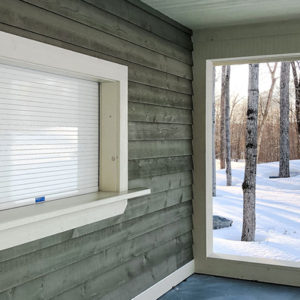

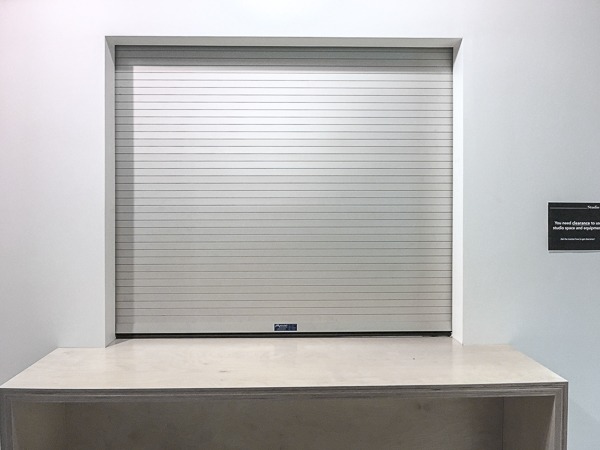

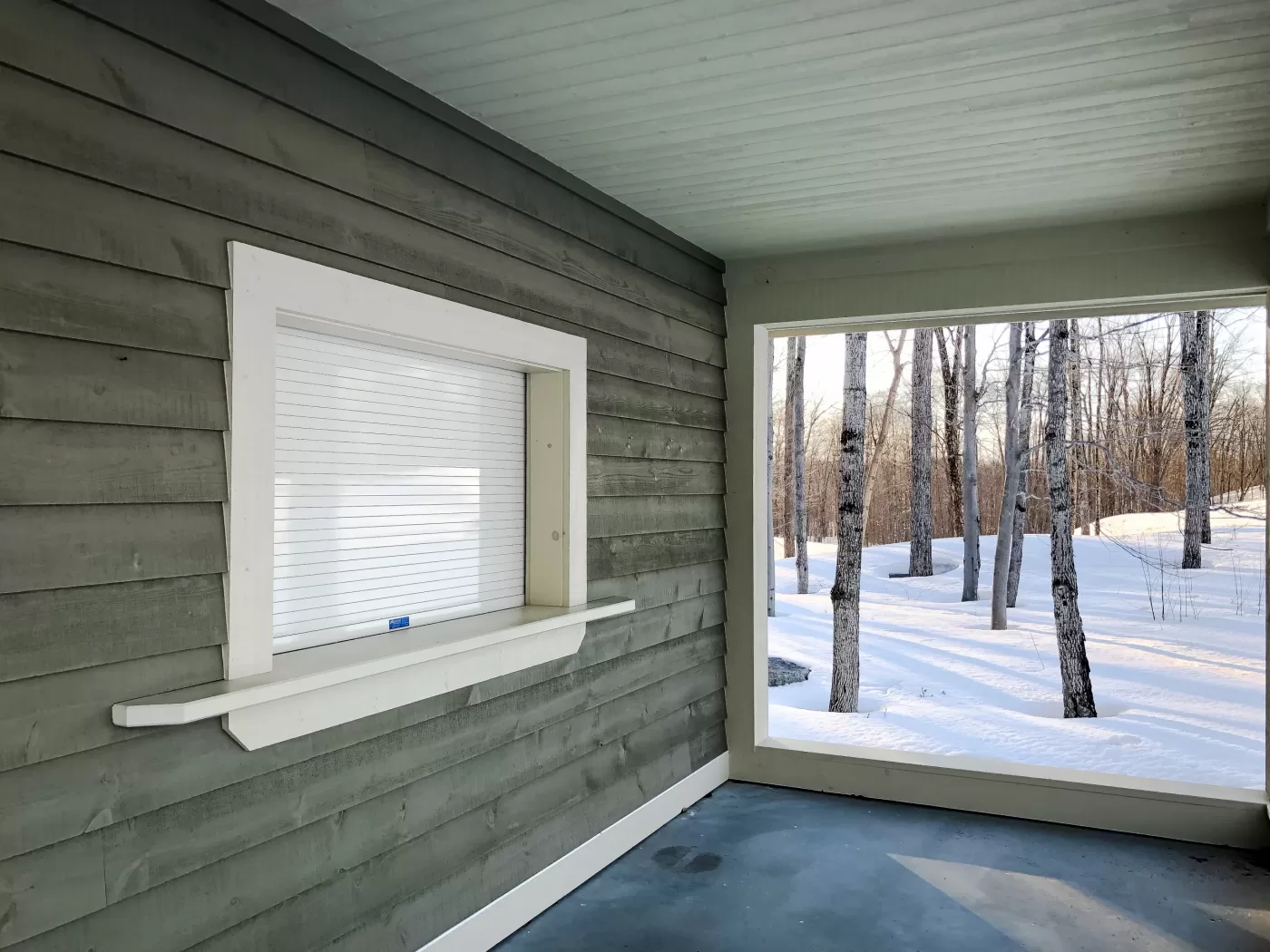

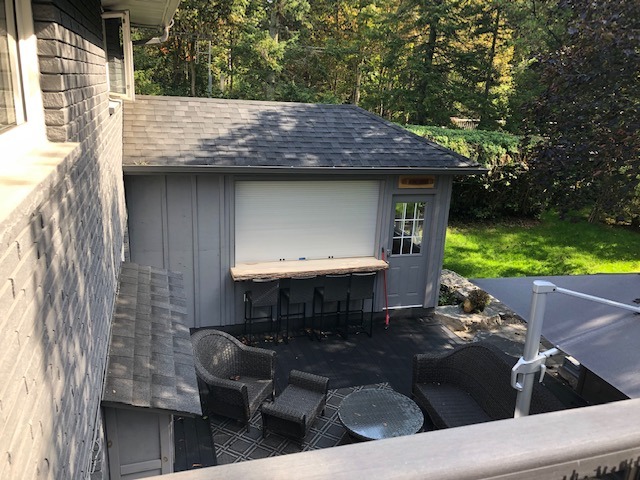

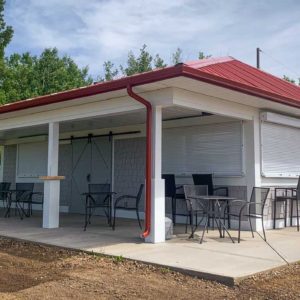

The ASH100 Rolling Aluminum Slimline Shutter is the ultimate solution for compact overhead coiling doors, aluminum shutters, and metal shutters in commercial and retail settings. Designed for small openings and space-efficient installations, it’s the perfect choice for bars, serveries, reception desks, and retail kiosks. Combining a sleek aesthetic with robust durability, the ASH100 excels in tight spaces where functionality and design are key.

Key Applications and Benefits

Compact and Space-Efficient Design

With a reduced slat depth and slat height of 1-1/4” (31.8 mm), the ASH100 is tailor-made for aluminum overhead doors up to 9’-0” (2,740 mm) wide and 5’-0” (1,524 mm) high. Its tighter coil design ensures a small footprint, making it ideal for magazine stands, confectionery cabinets, and compact storefronts.

Durable and Long-Lasting Construction

Crafted with 6063 aluminum alloy and a T-5 temper, the ASH100 offers superior strength and corrosion resistance. Its robust construction guarantees long service life, even in high-traffic environments.

Versatile Across Industries

From retail kiosks to reception counters, the ASH100 integrates seamlessly into various environments. Its slimline, space-saving design makes it perfect for places where practicality and aesthetics must coexist.

Product Specifications

Curtain

• Constructed from high-quality interlocking aluminum slats.
• Slats are 16 gauge (1.4 mm) thick and 1-1/2” (38.1 mm) high, providing a sleek, modern finish for retail and commercial spaces.

Guides

• Extruded aluminum construction: 1-1/4” (31.8 mm) wide by 1.7” (43 mm) deep.
• Wool pile wear strips and rigid PVC stripping ensure quiet, smooth operation while minimizing friction and reducing maintenance.

Counterbalance System

• Features extruded aluminum pipe barrels housing oil-tempered torsion springs for consistent and reliable operation.
• Adjustable spring tension ensures optimal balance and smooth performance.

Operation Options

• Standard: Manual push-up operation for effortless use in smaller applications.
• Optional: Hand-crank, chain-hoist, or motorized systems (direct tubular or indirect drive) with 120V 1-phase motors, perfect for a variety of commercial settings.
• Rated for 30,000 operational cycles, ensuring durability and long-term reliability.

Custom Finishes

• Standard Finish: Clear anodized aluminum for a polished, professional look.
• Optional Finishes: Custom RAL colors or color-matched options to align with your design requirements.

Why Choose the ASH100 Rolling Aluminum Slimline Shutter?

The ASH100 Rolling Aluminum Slimline Shutter offers unmatched durability, compact design, and modern style, making it an excellent choice for overhead coiling doors, metal shutters, and aluminum shutters. Ideal for retail spaces, countertops, and commercial kiosks, the ASH100 delivers reliable performance, smooth operation, and aesthetic appeal.

Looking for a space-saving shutter solution?
👉 Contact us today to customize the ASH100 Rolling Aluminum Slimline Shutter for your specific needs!
