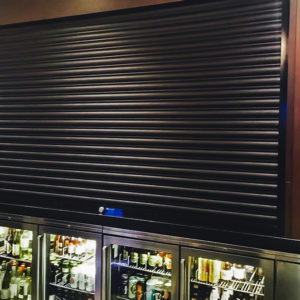

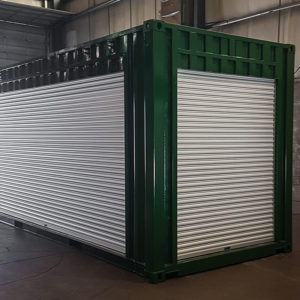

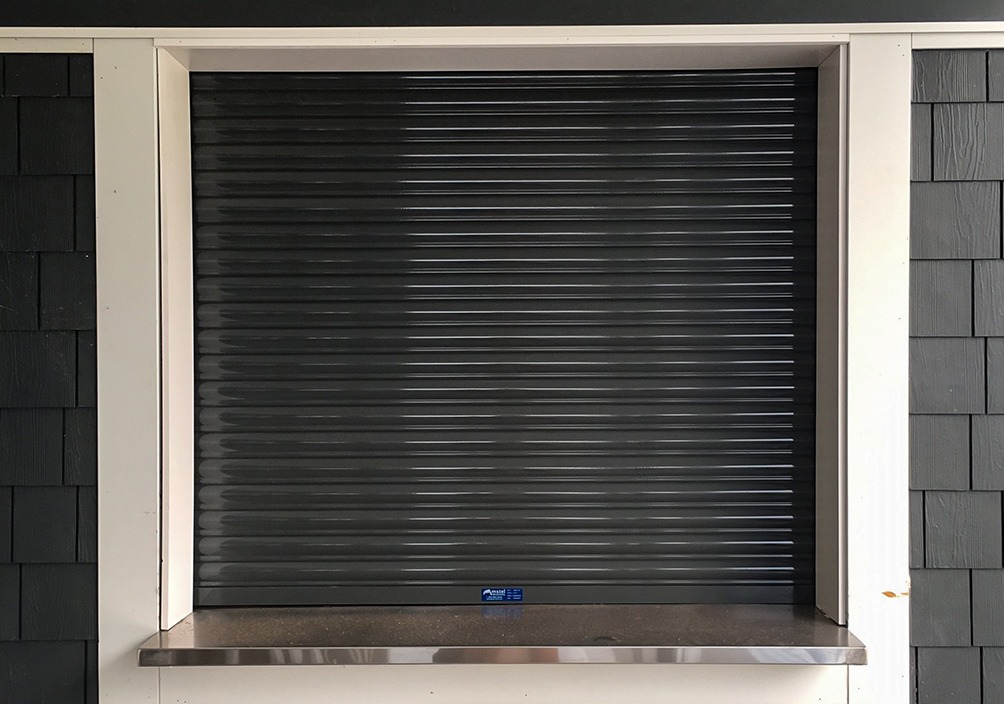

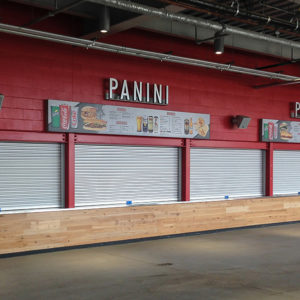

ASH300 Rolling Aluminum Shutter – Stylish Overhead Coiling Shutters

The ASH300 Rolling Aluminum Shutter is a premium choice for commercial and retail spaces requiring a sleek, durable, and highly functional solution. Designed with precision engineering and advanced materials, it combines modern aesthetics with reliable security.

Key Features and Specifications

Curtain

Constructed from interlocking extruded aluminum slat sections, 16 gauge (0.055” / 1.4 mm) thick, and 1/2” (13.4 mm) deep.
Curved slats with an overall height of 2-3/4” (70 mm) and a surface height of 2.58” (65.5 mm).
Manufactured using 6063 aluminum alloy with T-5 temper, meeting ASTM B 221 standards for strength and corrosion resistance.

Bottom Bar

Horizontal bars made from tubular aluminum extrusion:
- Width: 1.10” (28 mm).
- Height: 2” (50.8 mm).
- Wall Thickness: 0.06” (1.5 mm).
Locking options:
- Standard: Mortise cylinder locking at the center of the bottom bar (coil side).
- Optional:
  - Mortise cylinder locking on both sides.
  - Slide bolt locking at both jambs (secure side).

Guides

Dimensions: 1-1/4” (31.8 mm) wide by 1.7” (43 mm) deep extruded aluminum sections.
Features:
- Built-in upset shoulders for curtain retention.
- Bell-mouth design ensures smooth operation.
- Steel stoppers prevent roll-over and over-travel.
- Wool pile wear strip and rigid PVC stripping for quiet operation and reduced wear.
- Concealed fasteners spaced at 2’-0” (609.6 mm) O.C. for a clean appearance.

Counterbalance System

Constructed with an extruded aluminum pipe barrel housing oil-tempered torsion springs for reliable operation.
Spring tension adjustments via spring shaft pinning to U-lug inside the bracket plate, with accessible adjustment points.

Bracket Plates

Made from 1/8” (3.2 mm) thick steel plates, primer painted gray for durability and corrosion resistance.

Hood

Crafted from 0.040” (1 mm) clear anodized aluminum sheet, press-bent to form a protective coil enclosure.
Sections up to 144” (3658 mm) in length.
Fascia includes ¾” (19 mm) plywood backing board for added support.
Factory Finishes
- Standard: AA Clear Anodized, 0.0004 inch (10 micron) finish.
- Optional: Custom RAL colors or color matching available for tailored aesthetics.
Operation Options
- Standard: Manual push-up operation. Manufacturer recommendations provided for larger models.
- Optional:
  - Hand-crank or chain-hoist.
  - Motorized systems:
    - Tube motor direct drive (120V 1-phase).
    - Bracket-mounted direct or jackshaft indirect drive.
- Rated for 30,000 operational cycles for consistent performance over time.
Why Choose the ASH300 Rolling Aluminum Shutter?

The ASH300 blends contemporary design with exceptional functionality, making it a top-tier choice for businesses that value security, style, and durability. Its advanced features and customizable finishes ensure seamless integration into any space, while its robust construction guarantees reliable operation for years to come.

Secure your space in style with the ASH300 Rolling Aluminum Shutter!
👉 Contact us today to learn more or customize the perfect shutter for your application.
