ASH500 Perforated Rolling Aluminum Shutters

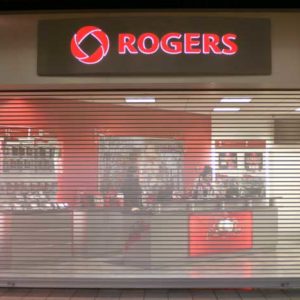

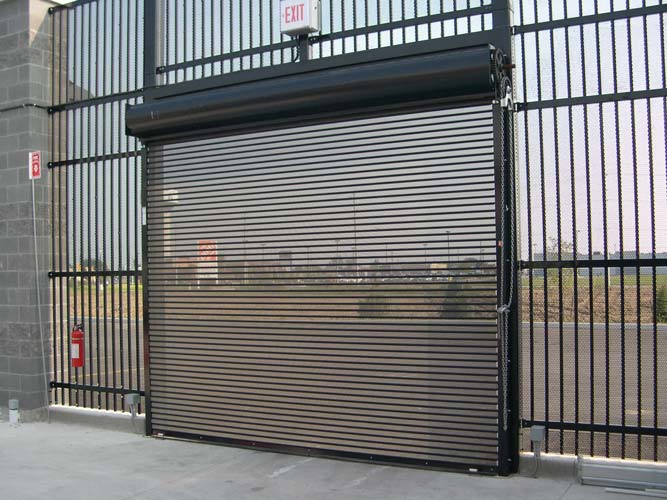

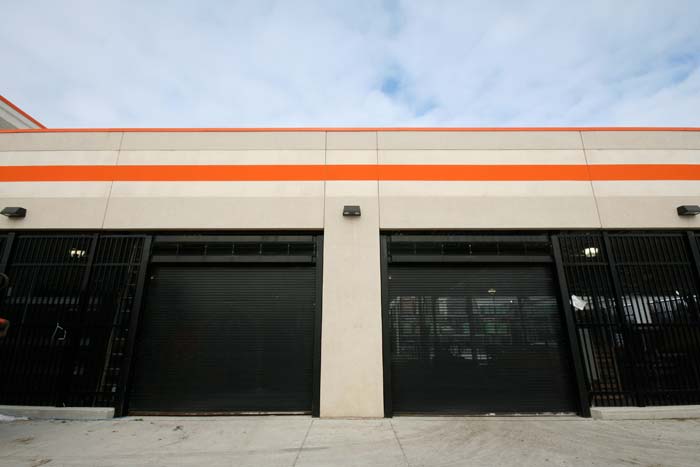

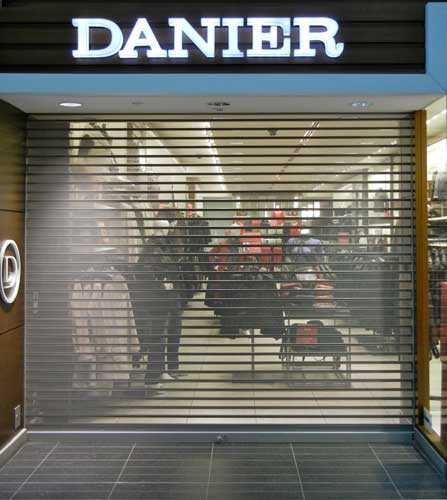

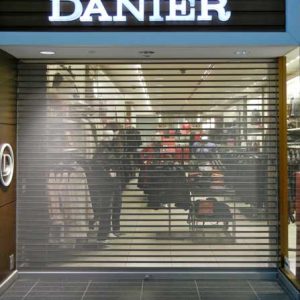

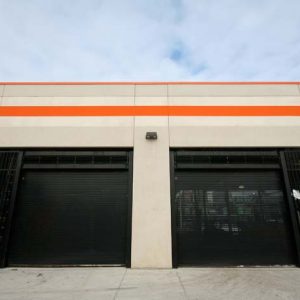

ASH590 Rolling Aluminum Perforated Shutter – Elegance with Ventilation

The ASH590 Rolling Aluminum Perforated Shutter combines aesthetic appeal with functional airflow, making it an ideal choice for retail, commercial, and industrial applications. Designed for durability, visibility, and ventilation, the ASH590 ensures security without compromising on style.

Key Features and Specifications

Curtain

  • Constructed from interlocking extruded aluminum slat sections:
    • Thickness: 18 gauge (0.04” / 1.02 mm).
    • Depth: 3/4” (19.7 mm).
    • Height: 3-3/16” (81 mm) per slat, with a flat surface height of 2-3/4” (70 mm).
  • Slats are perforated with 0.046” (1.17 mm) diameter holes, allowing 33% airflow for enhanced ventilation.
  • Sized to fit door openings with precision for seamless integration.
  • Manufactured with 6063 aluminum alloy, T-5 temper, meeting ASTM B 221 standards for strength and corrosion resistance.

Bottom Bar

  • Standard: Econo Bottom Bar featuring horizontal tubular aluminum extrusion.
    • Width: 2” (50.8 mm).

Guides

  • Customizable extruded aluminum guide rails to ensure smooth operation and retention of the curtain.

Counterbalance System

  • Includes an extruded aluminum pipe barrel with oil-tempered torsion springs for smooth, balanced operation.

Bracket Plates

  • Constructed from durable steel, primer-coated for long-lasting performance.

Hood

  • Made from 0.040” (1 mm) clear anodized aluminum sheet, press-bent for a durable coil enclosure.
  • Sections up to 144” (3658 mm) in length.
  • Fascia includes ¾” (19 mm) plywood backing board for added support.

Factory Finishes

  • Standard: AA Clear Anodized, 0.0004 inch (10 micron) finish.
  • Optional: Custom RAL colors or color matching available for tailored aesthetics.

Operation Options

  • Standard: Manual push-up operation. Manufacturer recommendations provided for larger models.
  • Optional:
  • Rated for 30,000 operational cycles for consistent performance over time.

Why Choose the ASH590 Rolling Aluminum Perforated Shutter?

The ASH590 delivers the perfect balance of security, ventilation, and modern design. Its perforated slats offer excellent airflow and visibility, making it a versatile solution for environments requiring both protection and openness. With customizable finishes and multiple operation options, the ASH590 integrates seamlessly into any space.

Secure your space with style and airflow with the ASH590 Rolling Aluminum Perforated Shutter!
👉 Contact us today to learn more or customize the perfect shutter for your application.
