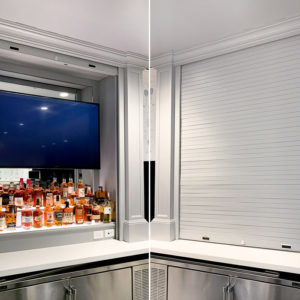

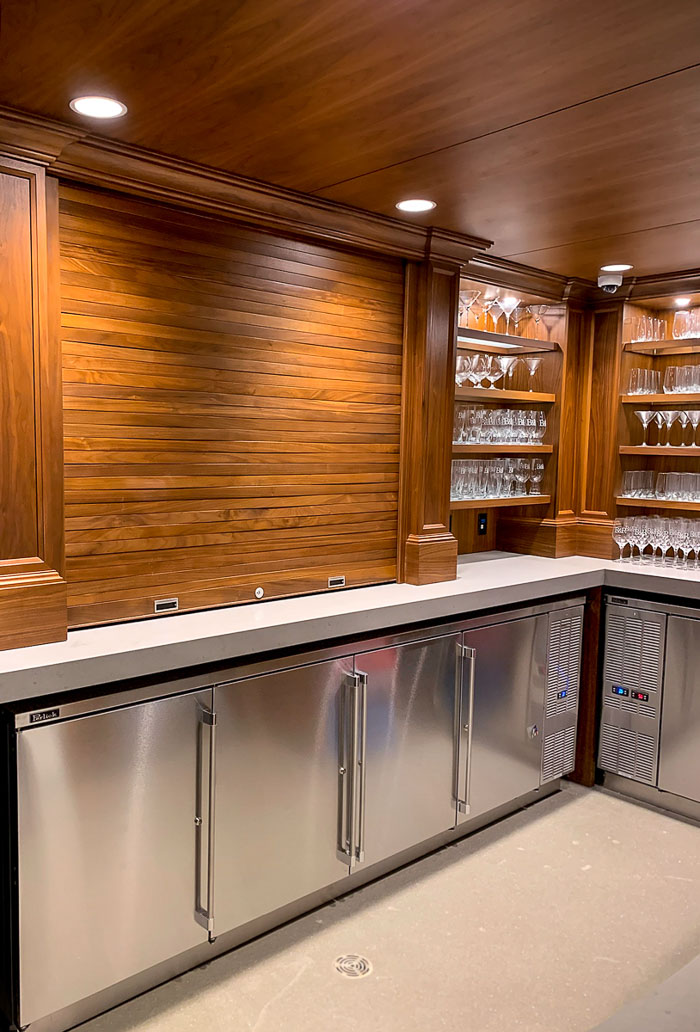

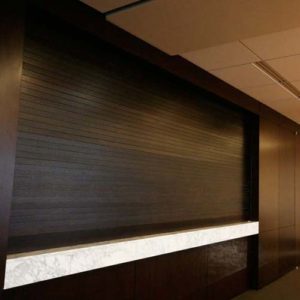

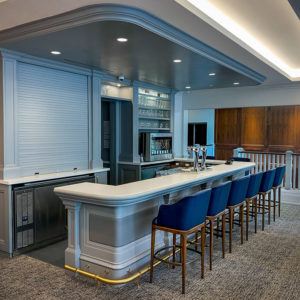

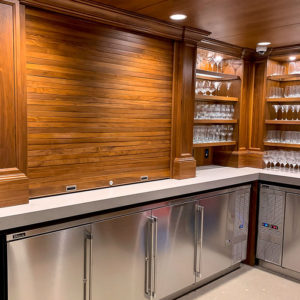

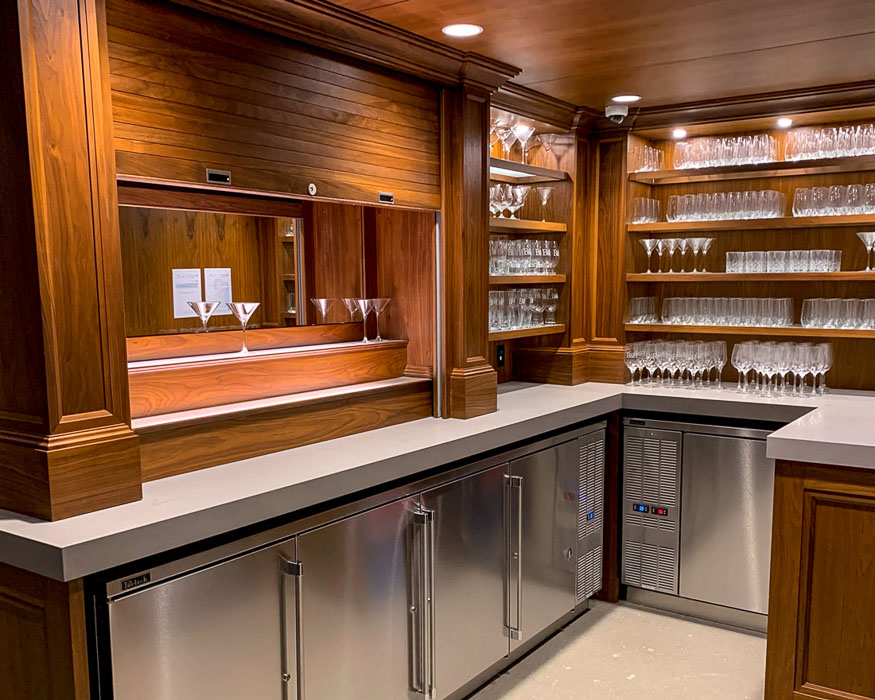

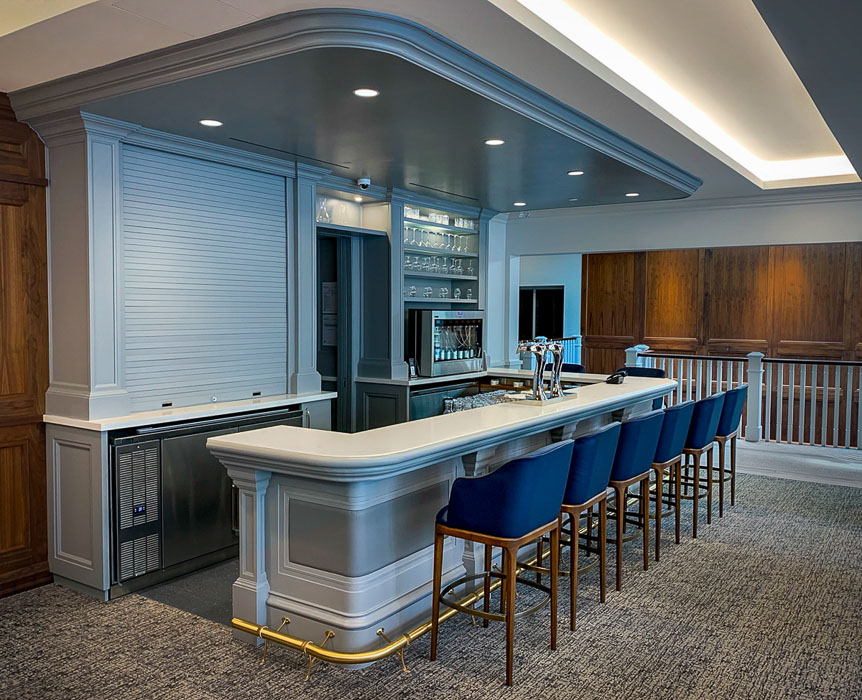

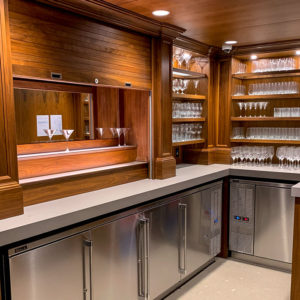

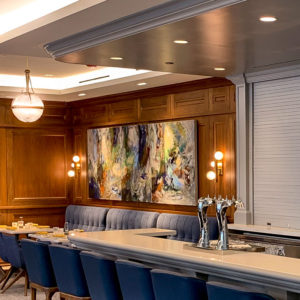

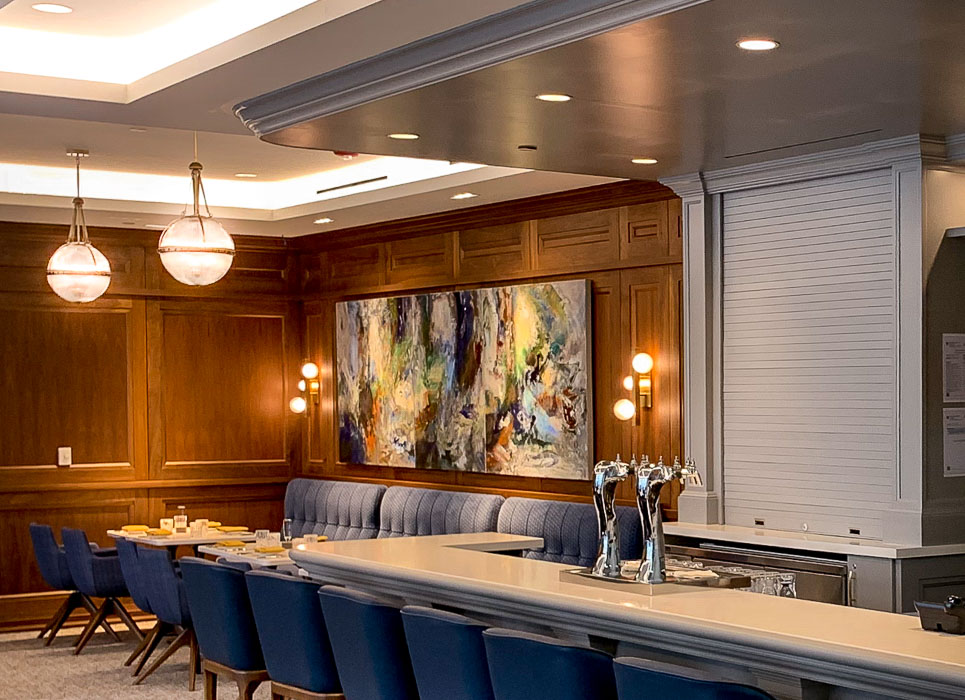

ASH900 Rolling Wood Shutter – A Classic Touch with Modern Durability

The ASH900 Rolling Wood Shutter is designed to bring a timeless, elegant aesthetic to your commercial or residential space while offering modern functionality and security. With a combination of premium kiln-dried wood and durable aluminum components, this shutter offers both beauty and reliability.

Key Features and Specifications

Curtain:

• Constructed of solid wood slat sections, 3/4” (19 mm) thick and 1-1/4” (31.75 mm) high, custom-sized to fit the door opening.
• Flat slat surface height of 1.3” (33 mm) for a sleek and modern look.
• Kiln-dried, clear-grade wood for superior quality.

Material:

• Wood: Clear-grade solid wood, kiln-dried for lasting strength and finish.
• Aluminum: 6063 aluminum alloy with T-5 temper, conforming to ASTM B 221 for corrosion resistance and strength.
• Plywood: ¾” thick clear-grade plywood of the same species as the wood slats when available.

Bottom Bar:

• Horizontal bars of tubular aluminum extrusion: Width: 1.10” (28 mm), Height: 2” (50.8 mm), Wall thickness: 0.06” (1.5 mm), wrapped in 1/4″ (6.35 mm) thick solid wood.

Locking:

• Standard: Mortise cylinder locking at the center of the bottom bar (coil side).
• Optional: Mortise cylinder locking at both sides of the bottom bar.

Guides:

• Extruded aluminum guide sections: 1-3/4” (44.5 mm) wide by 2-1/16” (52.4 mm) deep with built-in upset shoulders for curtain retention.
• Bell-mouth design for smooth operation.
• Steel stoppers mounted to guides to prevent over-travel.
• Fitted with wool pile wear strips and rigid PVC stripping to ensure quiet, smooth operation.
• Guide Finish: Clear anodized aluminum or optional wood-wrapped guides to match the curtain wood species.

Counterbalance:

• Extruded aluminum involute tube acts as the pipe barrel, enclosing oil-tempered helical torsion springs for precise counterbalancing.
• Spring tension is adjusted via pinning the spring shaft to a U-lug on the inside of the bracket plate.

Bracket Plates:

• Constructed from 1/8” (3.2 mm) thick steel plate, primer-painted gray for durability.

Hood:

• Standard: 0.040” (1 mm) clear anodized aluminum sheet, press-bent to form a coil enclosure, with fascias up to 144” (3658 mm).
• Optional: 3/4″ (19 mm) plywood with face veneer to match the curtain wood.

Factory Finishes:

• Standard: Unstained Red Oak.
• Optional: Birch, Maple, Cherry, and Mahogany unstained finishes. Custom stains available upon request.

Factory Finishes

• Standard: Unstained Red Oak.
• Optional: Birch, Maple, Cherry, and Mahogany unstained finishes. Custom stains available upon request.

Operation Options

• Standard: Manual push-up operation. Manufacturer recommendations provided for larger models.
• Optional:
  • Hand-crank or chain-hoist.
  • Motorized systems:
    • Tube motor direct drive (120V 1-phase).
    • Bracket-mounted direct or jackshaft indirect drive.
• Rated for 30,000 operational cycles for consistent performance over time.

Why Choose the ASH900 Rolling Wood Shutter?

The ASH900 Rolling Wood Shutter combines natural beauty with robust functionality. Ideal for applications where both aesthetics and durability matter, this shutter is perfect for retail, commercial, and residential installations. Its custom finishes and high-quality materials make it a standout choice for creating a lasting, elegant impression.
